Script

The Script layer enables direct writing of GLSL, with additional variables and functions to simplify the process.

This allows you to create custom GPU particle modifiers.

Script

Selecting a Script layer from the nxQuestion list will open the script editor.

This will contain the simple default script.

The default script sets the particle color to yellow if the age is greater than 1 second.

if (particle.age > 1.0)
{
    particle.color = vec3(1.0, 1.0, 0.0);
}

The script editor features simple editing (with undo and clipboard) and syntax highlighting.

It has the common key shortcuts:

Ctrl C, X, V, Z for copy, cut, paste, undo
Double-click a word to select
Shift + cursor to extend selection
Tab / Shift-Tab with a selection to increase or decrease indent

There is a right-click menu, which has the usual editing and load/save functions.

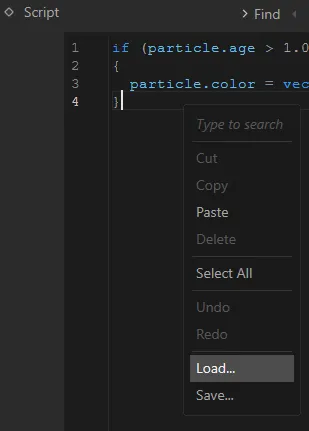

Right-click menu options.

There are Find and Replace tools, with the usual options.

Find

This field allows you to search for defined words in the script.

Use the additional buttons to match case, or match whole word only.

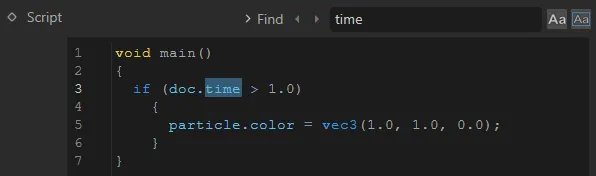

Using the Find parameter, ‘time’ is being searched for (and discovered, highlighted).

Replace

This parameter will become available once an item is discovered and highlighted.

It allows you to replace defined elements of the script with whatever you have input into the field.

Use the additional buttons to replace next, or replace all.

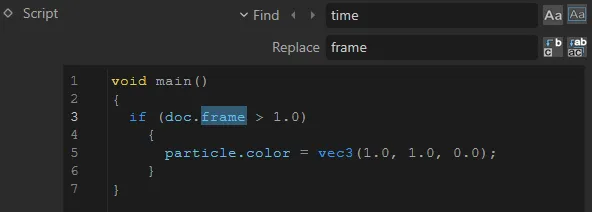

Utilizing the Replace option, ‘time’ is replaced with ‘frame’.

Functions

The script can optionally contain a main() function.

This is then called, by default, for this script.

void main()
{
    if (doc.time > 1.0)
    {
        particle.color = vec3(1.0, 1.0, 0.0);
    }
}

A main() does not need to be defined; all the script code is embedded into the currently processing code (for example, within a Question layer, or at the top level, within the shader’s own main function).

Scripts can define functions, which can then be called within the script or other scripts.

Order matters; functions must be defined before they are called.

The final shader script is built in the order it appears within nxQuestion.

If you define a user variable within nxQuestion after you try to use it, the result may not be as expected, and you may get an error shown in the Cinema 4D console.

Functions should be defined at the top of the script. Any global variables or #define macros should appear before the first function definition.

On finding the first function, anything declared before it will also be included.

Debugging

Print

There is a built-in print() function to print strings and simple variables back to the Cinema 4D console.

print() takes first a format string, then any variables or values.

For example, print("hello") will print hello to the console. However, it will print numerous times because scripts execute per particle, so be very cautious when printing.

print("hello");

The above will produce output like the following in the console, once per particle:

hello
hello
hello
hello
...

It is best to do an index check and limit prints to a specific particle, or use a low particle count when debugging.

if (index == 0)
{
    print("hello");
}

With the index check, only one line is printed:

hello

Print Formatting

The print() function signature is:

print("format string", parameters...)

Format specifiers begin with %. The supported specifiers are:

Specifier	Output
`%d`, `%i`, `%l`	Signed integer
`%u`	Unsigned integer
`%f`	Float
`%<width>.<places>f`	Float with decimal places, e.g. `%.3f` or `%1.3f`. The `<width>` is unused.
`%.<components>v<places>f`	Vector components, e.g. `%.3v3f` prints all three components of a `vec3` with 3 decimal places. `<components>` is the number of floats in the vector.

Errors

If errors are found when the GLSL is compiled, these will print into the console.

Generally this will be due to script errors, but any error compiling nxQuestion will be shown.

For example, a typo in a function name:

if (index == 0)
{
    wrint("hello");
}

Produces the following in the console:

nxQuestion Error in Script at line 3 : 'wrint' : no matching overloaded function found

When making script changes, it is highly recommended to test first with a single (or low) particle count and a single frame step.

GPUs are not happy when you make mistakes.

Variables

There are helper variables built in, which are converted from keywords at compile time.

You can access the current particle’s data with particle and any particle by index using particles[particle_index].

Scripts execute per particle in parallel on the GPU. The reserved variable index holds the current particle’s index.

Access: R = read only, RW = read/write.

Particle

These variables access data for the currently processing particle.

Variable	Description	Type	Access
`particle.age` / `particle.time`	Particle age in seconds	float	RW
`particle.frame`	Particle age in frames	int	R
`particle.speed`	Particle speed. Writing scales velocity magnitude while keeping direction.	float	RW
`particle.group`	Particle group	int	RW
`particle.radius`	Particle radius	float	RW
`particle.mass`	Particle mass	float	RW
`particle.life`	Particle lifespan in seconds	float	RW
`particle.id`	Particle ID	int	R
`particle.flags`	Particle flags	int	RW
`particle.distance`	Distance the particle has travelled	float	R
`particle.friction`	Particle friction	float	R
`particle.bounce`	Particle bounce	float	R
`particle.emitter`	Particle emitter index	int	R
`particle.color`	Particle RGB color	vec3	RW
`particle.position`	Particle position	vec3	RW
`particle.velocity`	Particle velocity	vec3	RW
`particle.rotation`	Particle rotation	vec3	RW
`particle.scale`	Particle scale	vec3	RW
`particle.origin`	Particle position at the start of the current frame	vec3	R
`particle.uvw`	Particle UVW coordinates	vec3	R
`particle.vertex`	Particle vertex weight	float	R
`particle.neighbors(distance)`	Number of particles within `distance`	int	R
`particle.density`	Particle density, calculated live	float	R
`particle.born`	True if the particle was born this frame	bool	R
`particle.field`	Falloff/field value for the particle	float	R
`particle.random`	Random value derived from the particle ID	float	R
`particle.index`	Particle index on the GPU	int	R
`particle.smoke`	Particle smoke value (nxExplosiaFX)	float	RW
`particle.temperature`	Particle temperature value (nxExplosiaFX)	float	RW
`particle.fuel`	Particle fuel value (nxExplosiaFX)	float	RW

Any particle can be accessed using particles[particle_index].<variable>, for example:

vec3 otherPos = particles[0].position;
float otherAge = particles[0].age;

All of the same properties listed above are available on particles[n], with the same types, but all are read-only. To get the speed of another particle use length(particles[n].velocity) rather than particles[n].speed.

Document

Variable	Description	Type	Access
`doc.time`	Document time in seconds	float	R
`doc.delta`	Time elapsed since the last frame in seconds	float	R
`doc.frame`	Current document frame	int	R
`doc.fps`	Document frame rate	int	R

Math

Variable	Description	Type	Access
`math.random(seed)`	Random value generated from `seed` (int)	float	R

Compute

Variable	Description	Type	Access
`compute.iteration`	Current nxQuestion iteration	int	R
`compute.iterationcount`	Total number of iterations set in nxQuestion	int	R

Emitters

Variable	Description	Type	Access
`emitters.count`	Number of emitters on the GPU. May differ from the document count, as CPU-only emitters are not present.	int	R
`emitter[n].first`	Index of the first particle for this emitter. On the GPU all particles share a single array.	int	R
`emitter[n].count`	Number of particles for this emitter	int	R
`emitter[n].seed`	Random seed for this emitter	int	R
`emitter[n].create(position, velocity, color, radius, life, flags, userdata)`	Creates a new particle on the GPU. Returns the new particle’s index for use with `newparticle[]`. `flags` should be `0`. `userdata` can be any integer value. `n` must be a literal integer; using `particle.emitter` here will cause a type error.	int	—

New Particles

Particles created with emitter[n].create() are written into a separate output buffer. The returned index is used to set their properties via newparticle[new_index].

Variable	Description	Type	Access
`newparticle[n].userdata`	User-defined integer value	int	RW
`newparticle[n].emitter`	GPU emitter index used to create the CPU-side particle. Set to `-1` to skip CPU-side creation.	int	RW
`newparticle[n].position`	Particle position	vec3	RW
`newparticle[n].velocity`	Particle velocity	vec3	RW
`newparticle[n].radius`	Particle radius	float	RW
`newparticle[n].color`	Particle RGB color. If the `x` component is less than `0.0` the color is ignored.	vec3	RW
`newparticle[n].life`	Particle lifespan. Set to `0.0` or less to ignore.	float	RW
`newparticle[n].flags`	Particle flags. Set to `0`.	int	RW

Script Examples

Color by Speed

Particles are colored based on their speed. Slow particles appear blue and fast particles appear red.

void main()
{
    // normalize speed to 0-1 range; adjust the multiplier to suit your particle velocities
    float speed = clamp(particle.speed * 0.2, 0.0, 1.0);
    // slow = blue, fast = red
    particle.color = vec3(speed, 0.0, 1.0 - speed);
}

Fade Color Over Lifetime

Particle color fades from orange to blue over the particle’s lifetime.

void main()
{
    // 0.0 at birth, 1.0 at end of life
    float lifeRatio = particle.age / particle.life;
    // blend from orange to blue
    particle.color = mix(vec3(1.0, 0.5, 0.0), vec3(0.0, 0.2, 1.0), lifeRatio);
}

Orbit Force

Particles are pushed tangentially around the world origin in the XZ plane. Increase or decrease the multiplier to control orbit speed.

void main()
{
    // flatten to XZ plane to orbit around the Y axis
    vec3 pos = vec3(particle.position.x, 0.0, particle.position.z);
    float dist = length(pos);
    if (dist > 0.001)
    {
        // tangent is perpendicular to the radial direction and the Y axis
        vec3 tangent = cross(normalize(pos), vec3(0.0, 1.0, 0.0));
        // doc.delta makes the force frame-rate independent
        particle.velocity += tangent * 300.0 * doc.delta;
    }
}

Color Cycling by Distance Travelled

There is no built-in way to reset particle.distance, but particle.smoke, particle.temperature and particle.fuel are writable floats that persist in the particle buffer between frames. When not used for nxExplosiaFX, any of them can serve as a custom per-particle accumulator.

This script uses particle.smoke to accumulate distance travelled. Using mod() to sample cyclically means no reset is needed; the value grows freely but the color repeats every 200 units. Three sin waves offset by 120 degrees each produce a smooth continuous cycle through the full color wheel.

void main()
{
    // accumulate distance travelled; particle.smoke persists between frames
    particle.smoke += particle.speed * doc.delta;

    // mod() cycles the value without needing a reset
    float t = mod(particle.smoke, 200.0) / 200.0;

    // three sin waves offset by 120 degrees cycle smoothly through the color wheel
    particle.color = vec3(
        sin(t * 6.28318) * 0.5 + 0.5,
        sin(t * 6.28318 + 2.09440) * 0.5 + 0.5,
        sin(t * 6.28318 + 4.18879) * 0.5 + 0.5
    );
}

Use particle.temperature or particle.fuel if you need additional independent counters or if nxExplosiaFX is active in the scene.

Spawn Child Particle on Birth

When each particle is born a smaller child particle is spawned from the same position with an upward velocity offset and half the lifespan. The emitter index is passed as a literal; change 0 to match the GPU index of your target emitter.

void main()
{
    // particle.born is true only on the frame the particle is created
    if (particle.born)
    {
        emitter[0].create(
            particle.position,
            particle.velocity + vec3(0.0, 50.0, 0.0),  // inherit velocity plus upward offset
            vec3(1.0, 0.8, 0.0),                        // orange
            particle.radius * 0.5,                       // half the parent radius
            particle.life * 0.5,                         // half the parent lifespan
            0,                                           // flags (always 0)
            0                                            // userdata
        );
    }
}

Animated Vector Field

A time-animated trig field steers particles along flowing organic paths, similar in look to curl noise but with no solver required. The three field components are offset across spatial and time axes so each axis flows independently. Particle color reflects the current field direction, mapping XYZ to RGB.

Adjust scale to match your scene size (smaller values give larger slower waves) and the force multiplier to taste.

void main()
{
    // scale position into field space
    float scale = 0.004;
    vec3 p = particle.position * scale;
    // animate the field over time
    float t = doc.time * 0.3;

    // each component uses offset axes to prevent the field aligning to a single direction
    vec3 field = vec3(
        cos(p.y + t) - sin(p.z + t),
        cos(p.z + t) - sin(p.x + t),
        cos(p.x + t) - sin(p.y + t)
    );

    particle.velocity += field * 200.0 * doc.delta;
    // map field direction to color
    particle.color = abs(normalize(field));
}

Expanding Shockwave

A wave front expands outward from the world origin at a set speed, repeating every wavePeriod seconds. Particles are pushed radially as the wave passes through them and briefly lit up against a dark base color. Adjust waveSpeed, wavePeriod and waveWidth to control the timing and sharpness of the pulse.

void main()
{
    float waveSpeed = 400.0;  // units per second
    float wavePeriod = 3.0;   // seconds between pulses
    float waveWidth = 40.0;   // sharpness of the pulse edge

    // current radius of the wave front
    float waveRadius = mod(doc.time, wavePeriod) * waveSpeed;
    float dist = length(particle.position);
    // Gaussian falloff centered on the wave front
    float wave = exp(-pow(dist - waveRadius, 2.0) / (waveWidth * waveWidth));

    if (dist > 0.001)
    {
        // push particles outward proportional to wave intensity
        particle.velocity += normalize(particle.position) * wave * 2000.0 * doc.delta;
    }

    // blend from dark base color to bright orange at the wave front
    particle.color = mix(vec3(0.05, 0.05, 0.1), vec3(1.0, 0.6, 0.1), wave);
}

Sphere Surface Flow

Particles are attracted to the surface of a sphere and simultaneously pushed tangentially, causing them to flow across it. Particles on the surface appear cyan and those far from it appear orange. Set targetRadius to match the scale of your emitter.

void main()
{
    // set this to match the scale of your emitter
    float targetRadius = 300.0;
    float dist = length(particle.position);

    if (dist > 0.001)
    {
        vec3 normal = particle.position / dist;

        // attract toward the sphere surface; strength scales with distance from it
        particle.velocity += normal * (targetRadius - dist) * 3.0 * doc.delta;

        // push tangentially to create surface flow around the Y axis
        vec3 tangent = cross(normal, vec3(0.0, 1.0, 0.0));
        particle.velocity += tangent * 200.0 * doc.delta;

        // cyan on the surface, orange when far from it
        float t = clamp(abs(dist - targetRadius) / 100.0, 0.0, 1.0);
        particle.color = mix(vec3(0.2, 0.8, 1.0), vec3(1.0, 0.2, 0.0), t);
    }
}

Writing Scripts with AI

AI assistants are well suited to writing nxQuestion scripts. Because the scripting environment is a defined subset of GLSL with a fixed set of variables, giving an AI the right context up front produces accurate and immediately usable results.

Claude works particularly well for this. Paste the context block below at the start of your conversation, then describe what you want in plain language.

Context Prompt

Copy this into Claude before making any script requests.

You are writing scripts for the nxQuestion Script layer in NeXus for Cinema 4D.
Scripts are written in GLSL and run once per particle per frame on the GPU in parallel.

The script can use a void main() function or plain inline code.

PARTICLE VARIABLES (current particle):
particle.age / particle.time  float  RW  age in seconds
particle.frame                int    R   age in frames
particle.speed                float  RW  speed; writing scales velocity while keeping direction
particle.group                int    RW
particle.radius               float  RW
particle.mass                 float  RW
particle.life                 float  RW  lifespan in seconds
particle.id                   int    R
particle.flags                int    RW
particle.distance             float  R   total distance travelled, cannot be reset
particle.friction             float  R
particle.bounce               float  R
particle.emitter              int    R   GPU emitter index
particle.color                vec3   RW  RGB
particle.position             vec3   RW
particle.velocity             vec3   RW
particle.rotation             vec3   RW
particle.scale                vec3   RW
particle.origin               vec3   R   position at start of current frame
particle.uvw                  vec3   R
particle.vertex               float  R   vertex weight
particle.neighbors(dist)      int    R   particle count within radius; requires nxFluids
particle.density              float  R   requires nxFluids
particle.born                 bool   R   true only on birth frame
particle.field                float  R   falloff value
particle.random               float  R   stable random value from particle ID
particle.index                int    R   GPU array index
particle.smoke                float  RW  nxExplosiaFX or repurpose as custom float storage
particle.temperature          float  RW  nxExplosiaFX or repurpose as custom float storage
particle.fuel                 float  RW  nxExplosiaFX or repurpose as custom float storage

OTHER PARTICLES (read access):
particles[n].property         same properties as above

DOCUMENT:
doc.time    float  seconds
doc.delta   float  seconds since last frame; use this to make forces frame-rate independent
doc.frame   int
doc.fps     int

MATH:
math.random(seed int)  float  random value from integer seed

COMPUTE:
compute.iteration       int  current iteration
compute.iterationcount  int  total iterations

EMITTERS:
emitters.count         int  GPU emitter count
emitter[n].first       int  index of first particle for emitter n
emitter[n].count       int  particle count for emitter n
emitter[n].seed        int  random seed for emitter n
emitter[n].create(position vec3, velocity vec3, color vec3, radius float, life float, flags int, userdata int)
                       int  spawns a new particle; returns its index for use with newparticle[]
                            always use a literal integer for n, not particle.emitter

NEW PARTICLES (after emitter[n].create()):
newparticle[n].position    vec3   RW
newparticle[n].velocity    vec3   RW
newparticle[n].color       vec3   RW  ignored if x < 0.0
newparticle[n].radius      float  RW
newparticle[n].life        float  RW  ignored if <= 0.0
newparticle[n].flags       int    RW  always 0
newparticle[n].userdata    int    RW
newparticle[n].emitter     int    RW  GPU emitter index for CPU-side creation; -1 to skip

RULES:
- Use doc.delta to keep forces frame-rate independent
- particle.smoke, particle.temperature and particle.fuel persist between frames and can store custom per-particle float values when nxExplosiaFX is not in use
- particle.neighbors() and particle.density only work when nxFluids is active
- The variable `index` is the current particle's GPU array index
- Standard GLSL functions (sin, cos, length, normalize, cross, mix, clamp, mod, exp, abs, etc.) are all available

Example

Prompt:

Make particles orbit the Y axis with inner particles spinning faster than outer ones. Push particles outward from the Y axis over time so they spread out. Zero the velocity to avoid drift. Color them red close to the centre and blue farther out.

The result below is one example of what this prompt produced. AI responses vary each time, so the same prompt may return a different but equally valid script. If the first result is not quite right, refine the prompt or ask the AI to adjust specific parts.

Result:

void main() {
    float dist = length(particle.position.xz);

    // outward radial push -- spreads particles away from the Y axis over time
    float pushStrength = 20.0;
    vec2 outward = normalize(particle.position.xz + vec2(0.0001)) * pushStrength * doc.delta;
    particle.position.x += outward.x;
    particle.position.z += outward.y;

    // recalculate dist after push
    dist = length(particle.position.xz);

    // angular velocity decreases with distance; inner particles spin faster
    float omega = 8.0 / (dist + 0.001);
    float angle = omega * doc.delta;
    float cosA  = cos(angle);
    float sinA  = sin(angle);

    // rotate position directly in XZ using a 2D rotation matrix
    float x = particle.position.x;
    float z = particle.position.z;
    particle.position.x =  x * cosA - z * sinA;
    particle.position.z =  x * sinA + z * cosA;

    // zero velocity to prevent drift from physics integration
    particle.velocity = vec3(0.0);

    // red at the centre, blue toward the outside
    float minDist = 5.0;
    float maxDist = 200.0;
    float t = clamp((dist - minDist) / (maxDist - minDist), 0.0, 1.0);
    particle.color = mix(vec3(1.0, 0.0, 0.0), vec3(0.0, 0.0, 1.0), t);
}
