Action
An Action changes a particle when its parent Question passes: set or add a property, spawn, kill or break out of a loop.
To fire only on a condition, nest the Action under a Question. Without a question parent, an action runs on every particle immediately.
Action
Section titled “Action”The kind of action to perform. The default is Set. The others are Add, Spawn, Kill and Break.
Weight
Section titled “Weight”The weight applied when the action changes a particle’s property, as a percentage. At 100% the change is immediate. Lower values ease the property toward the target over several frames, which is useful for scaling a radius or blending a color in gradually.
Sets the value of the chosen particle property.
A Set action, here setting the particle Radius. The Action, Weight, Delay, Damping and Set Once controls are shared by the Set and Add kinds.
The particle property to set. The options are:
- Age: sets the particle’s age.
- Color: sets the particle’s color, with a Variation.
- Display: sets how the particle is drawn. The options are Points, Square, Line, Box 3D, Box 3D Filled, Circle, Circle Filled, Pyramid, Pyramid Filled, Arrow, Arrow Filled, Axis, Sphere, Screen Space Fluid and None.
- Freeze: freezes the particle, stopping its motion.
- Group: sets the particle’s nxGroup.
- Life: sets the particle’s lifespan.
- Mass: sets the particle’s mass, with a Variation.
- Radius: sets the particle’s radius, with a Variation.
- Rotation: sets the particle’s rotation, with a Variation.
- Scale: sets the particle’s scale, with a Variation.
- Speed: sets the particle’s speed, keeping its direction, with a Variation.
- Sticky: makes the particle sticky.
- User Data: sets a user-data value on the particle.
- Variable: sets a named Variable. Set to chooses the source: Constant uses a fixed value you enter, and Question uses the value that was tested in the triggering question.
- Velocity: sets the particle’s velocity, with a Variation.
Selecting a property reveals its value fields, so Radius shows a Radius value and Velocity shows X, Y and Z components.
The Display property draws each particle in the chosen shape. The drawable types render like this:
Points
Square
Line
Box 3D
Box 3D Filled
Circle

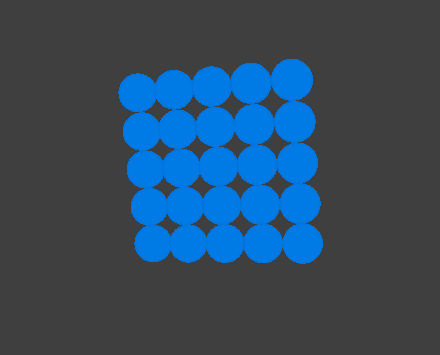

Circle Filled
Pyramid
Pyramid Filled
Arrow
Arrow Filled
Axis

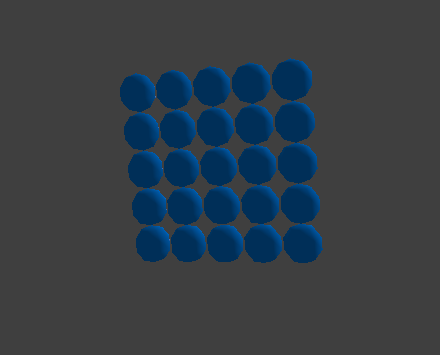

Sphere
The Line, Arrow and Arrow Filled types orient each particle along its velocity, shown here as a sideways stream. Screen Space Fluid renders the particles as a screen-space fluid surface and needs the accelerated OpenGL viewport, so it is not shown here. None hides the particle entirely.
Adds a spring-like response to the change instead of applying it instantly. It is most useful on the continuous properties such as Color, Mass, Radius and Speed.
Damping
Section titled “Damping”Reduces the spring-like response over time, so the change settles. Defaults to 20%.
Set Once
Section titled “Set Once”When enabled, the action is applied only once per particle.
Add works like Set, with the same value fields. The difference is that the value is added to the particle’s existing value each frame or iteration, rather than replacing it. Use it to grow a radius, accelerate or accumulate a property over time.
Spawns new particles from the source particle’s position. This requires a dedicated spawning emitter.

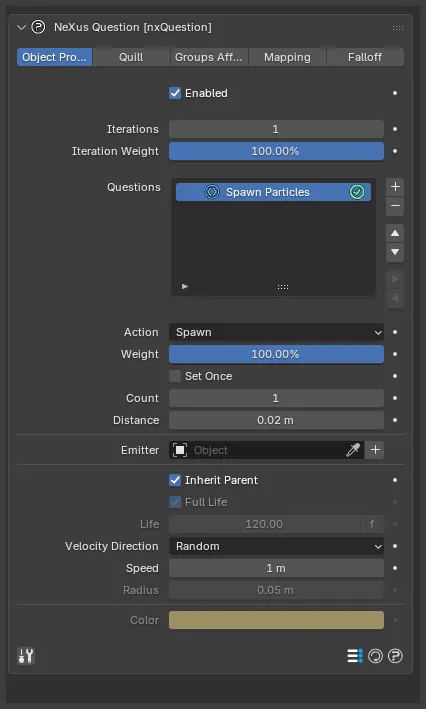

The Spawn action settings, with Inherit Parent enabled so the Life, Radius and Color fields are disabled.
Set Once
Section titled “Set Once”When enabled, each particle spawns only once.
How many new particles are spawned per source particle.
Distance
Section titled “Distance”Offsets the spawn position from the source particle’s origin, by this radius. Defaults to 0.02m. At 0 the new particles start exactly at the source position.
Spawn Emitter
Section titled “Spawn Emitter”The nxEmitter that the spawned particles belong to. Assign an existing emitter, or use the + Add Emitter button next to the field to create a linked, non-emitting emitter automatically.
Inherit Parent
Section titled “Inherit Parent”When enabled, spawned particles take their Life, Radius and Color from the source particle, and the matching fields below are disabled. Disable it to set those manually.
Full Life
Section titled “Full Life”Available when Inherit Parent is off. When enabled, spawned particles live for the entire scene.
Available when Inherit Parent and Full Life are both off. Sets how long spawned particles live.
Velocity Direction
Section titled “Velocity Direction”The direction of the spawned particles’ velocity. The options are Random and Source.
- Random: each spawned particle gets a random direction, giving a spherical burst from the source.
- Source: spawned particles inherit the source particle’s direction.
The speed of the spawned particles, used with the Random velocity direction.
Radius
Section titled “Radius”Available when Inherit Parent is off. Sets the radius of spawned particles.
Available when Inherit Parent is off. Sets the color of spawned particles.
Kills the particle. Nest it under a question to remove particles when a condition is met, for example once they reach a certain age.
Breaks out of the enclosing Loop or script, stopping further iterations for that particle.
